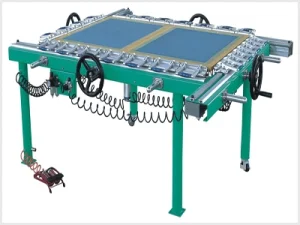

Various printing frame sizes can be handled by the HUAXING Mechanical Stretching Machine. Single or multiple printing frames is able to be processed withou any additional platform. Each clamp is smoothly sliding on its respective rail for producing the high tension screen with even stretching force on the entire screen. User-friendly and easy opertation are the keys of our machine.
The size of the machine is manufactured against your requipment.
| HX-C218 Size(M) |
Max. Stretching Are(M) |
Min. Stretching area(M) |
Stretching Force(N) |
Weight(kg) |
| 1.1*1.1 |
1.2*1.2 |
0.7*0.7 |
20-30 |
200 |
| 1.1*1.5 |
1.2*1.6 |
0.7*1.1 |
20-25 |
220 |
| 1.5*1.5 |
1.6*1.6 |
1.1*1.1 |
20-25 |
230 |
| 1.5*1.8 |
1.6*1.9 |
1.1*1.4 |
20+ |
250 |
| 1.5*2.0 |
1.6*2.1 |
1.1*1.6 |
20+ |
260 |
| HX-C518 Size(M) |
Max. Stretching Are(M) |
Min. Stretching area(M) |
Stretching Force(N) |
Weight(kg) |
| 1.1*1.1 |
1.2*1.2 |
0.7*0.7 |
30-35 |
220 |
| 1.1*1.5 |
1.2*1.6 |
0.7*1.1 |
30-35 |
230 |
| 1.5*1.5 |
1.6*1.6 |
1.1*1.1 |
25-35 |
240 |
| 1.5*2.0 |
1.6*2.1 |
1.1*1.6 |
25-30 |
260 |
| HX-C718 Size(M) |
Max. Stretching Are(M) |
Min. Stretching area(M) |
Stretching Force(N) |
Weight(kg) |
| 1.1*1.1 |
1.2*1.2 |
0.7*0.7 |
50-60 |
350 |
| 1.1*1.5 |
1.2*1.6 |
0.7*1.1 |
35-50 |
380 |
| 1.5*1.5 |
1.6*1.6 |
1.1*1.1 |
30-45 |
400 |
| 1.5*2.0 |
1.6*2.1 |
1.1*1.6 |
30-40 |
450 |
| HX-C818 Size(M) |
Max. Stretching Are(M) |
Min. Stretching area(M) |
Stretching Force(N) |
Working Power(KW) |
Weight(kg) |
| 2.0*4.0 |
2.1*4.1 |
2.1*4.1 |
30-45 |
3.0 |
1000 |
| 2.0*5.0 |
2.1*5.1 |
2.1*5.1 |
30-40 |
4.5 |
1200 |
| 2.0*6.0 |
2.1*6.1 |
2.1*6.1 |
30-40 |
4.5 |
1500 |
