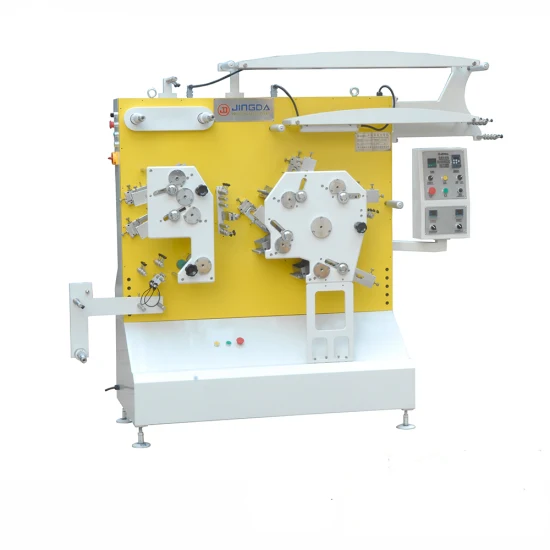

Flaxo Label Printing Machine
Product Description
- The printing mechanism of this series is that ink will be evenly spread-out on the ink-rollers at first,from the ink-rollers,the ink transfers to the printing cylinder.
- The flexo photopolymer plate will collect the ink and press directly on the surface of the materials.
- The label will go through the drying process to complete the whole printing procedures.
- The printed label can reach the result of higher strong washing fastness by heating inside the Automatic Temperature Controlled Oven between 3-8 hours.
- Strong colorfastness to wash and polish,perfect colour registration,stability the different printing cylinders.
- Printing front 2 colors,back 1 color,colour and lustre is bringht beautiful for better result,and printing black and better white.
- It is used for flexo label printing in ribbons,cotton tape ,woven label, nylon tape, paper tape and ribbon tape.
| 2 Colors | 3Colors | 4Colors | 5 Colors | 6 Colors | 7 Colors | 8 Colors | |
| Single-Side Model | JR1520 | ||||||
| Double-Side Model | JR-1521 | JR-1531 | JR-1541, JR-1532 | JR-1542 , JR-1551 | JR-1552, JR-1561 | JR-1562 | |
| Printing Area | 108-401mm (JR-1560,JR-1561,JR-1561:300.9mm) | ||||||
| Max. Print Width | 155mm | ||||||
| Max.Print Speed | 60m/min | ||||||
| Available Materials | Satin, nylon, taffeta, polyester,cotton, woven tape, elastic tape,Paper sticker and roll paper. For printing sticker, independent re-winder and dryer are necessary, thickness within 1mm |
||||||
| Power | AC:220V 50Hz/60Hz | ||||||
| Output | 4..7KW | 6.2KW | |||||
| Dimension (LxWxH)mm | 1800x700x1900mm | 2100x900x2000 mm | |||||
| Weight (KG) | 700KGS | 750KGS | 800KGS | 850KGS | 1100KGS | 1200KGS | 1200KGS |
